Sale!
Categories: Outer box, Switches
Walton -2 Gang Mounting Box- W2MOB 2M Outer Box – S3/V8 (Series)
Original price was: 45.00৳ .36.00৳ Current price is: 36.00৳ .
Product Configuration:
Brand: Walton
Model Code: W2MOB
Product Type: 2M Surface Mounting Outer / Back Box
Dimensions: 172 mm x 86 mm x 35 mm (LxWxD)
Material Base: High-Grade Rigid PVC
Internal Threading: Brass Knurled Inserts
Safety Class: Fire Resistant & High Dielectric Insulation

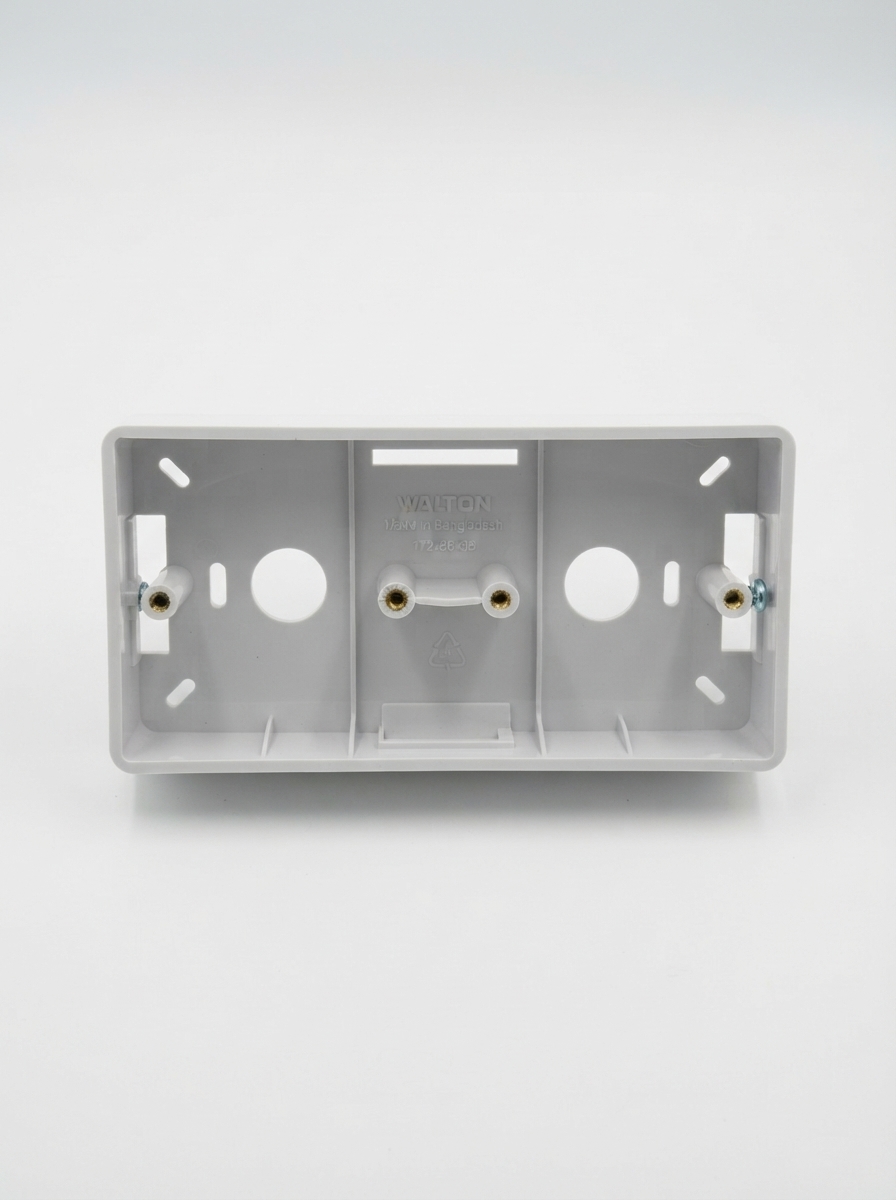

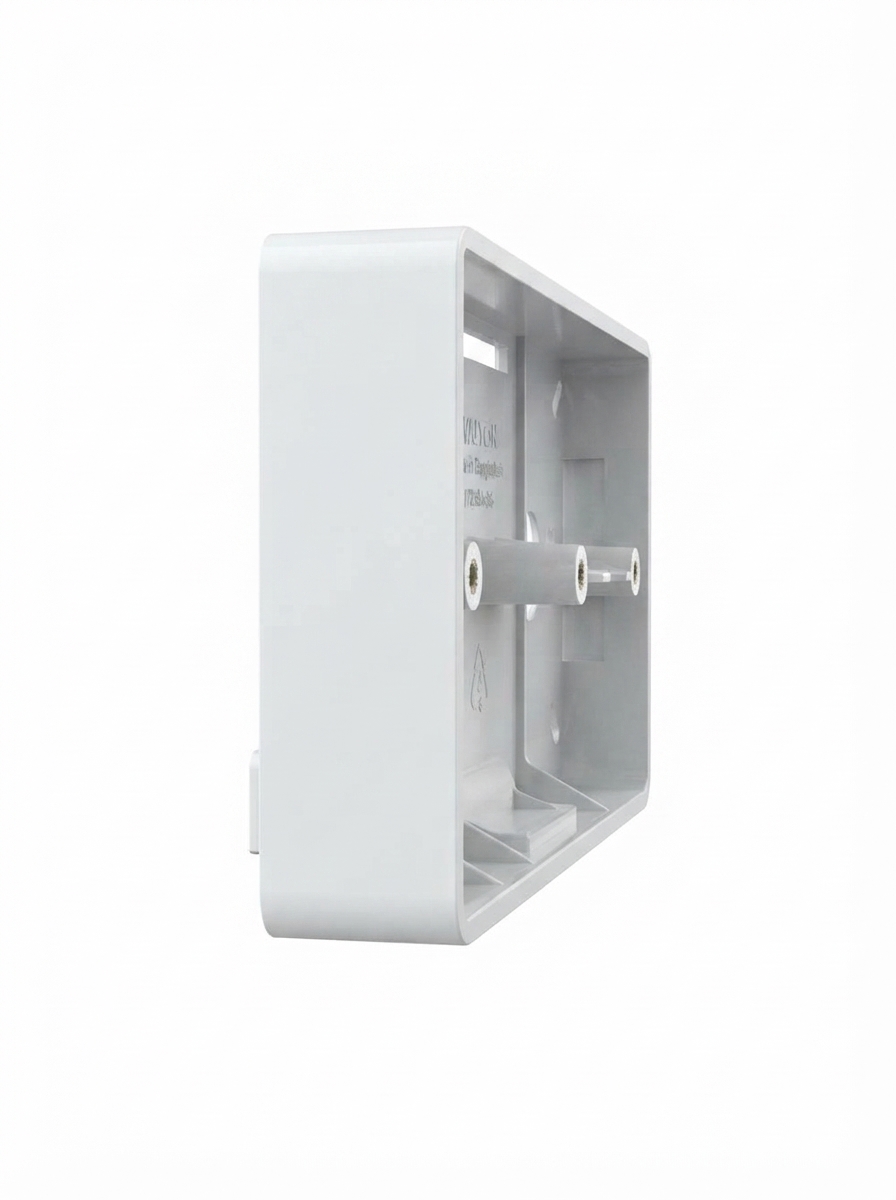

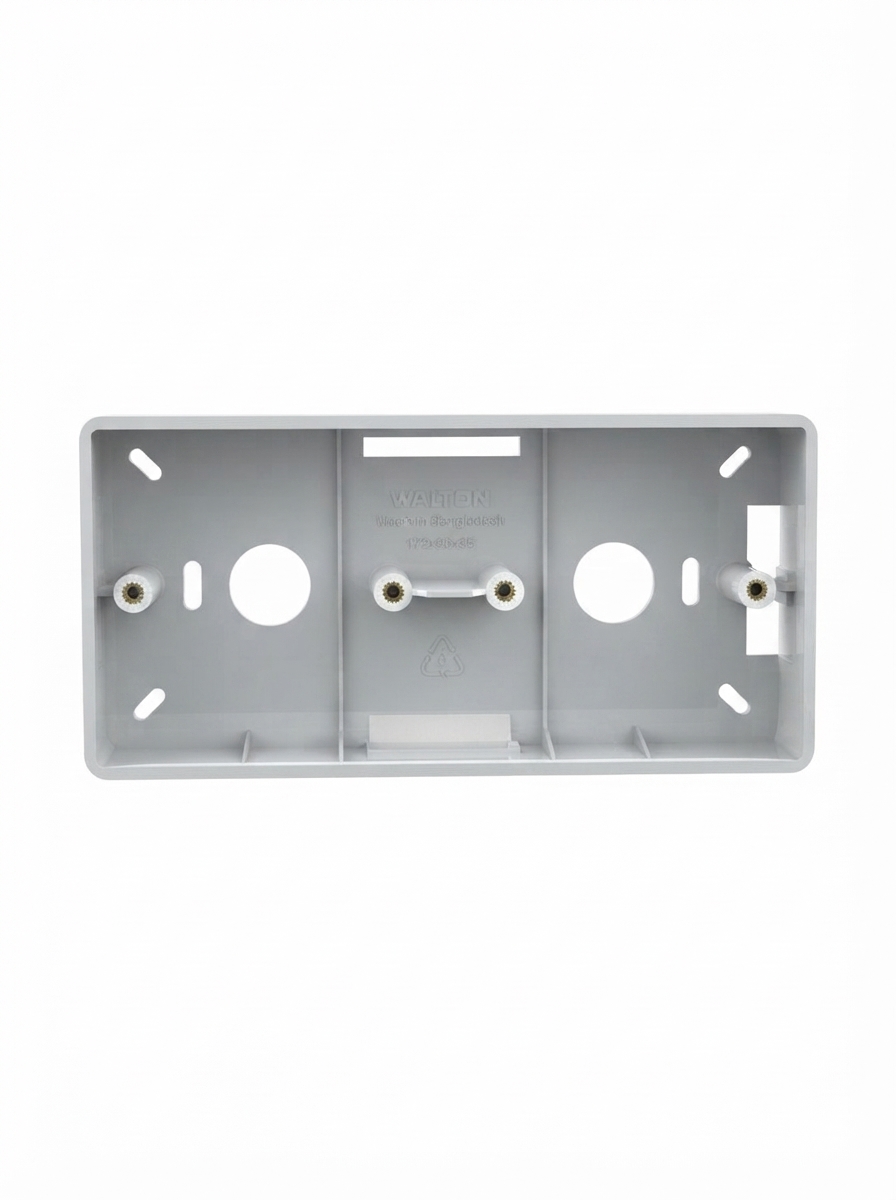

Walton W2MOB 2M Outer Box (S3/V8 Series) – Fire Resistant PVC Surface Mounting Back Box with Brass Knurled Inserts
Expand your surface wiring safety and housing capacity with the industrial-grade Walton W2MOB 2 Gang Outer Box. Engineered to standard 172x86x35 mm double-gang dimensions, this heavy-duty back enclosure provides a sturdy, seamless mounting foundation for dual-gang surface switch plates, combined power outlets, and multi-control modules. Constructed from high-density rigid (hard) PVC, the protective outer casing shields internal electrical wiring and cables from crushing, sharp wall abrasions, and accidental external impacts. Its advanced PVC compound delivers high dielectric insulation and certified fire-resistant safety, self-extinguishing to isolate electrical short circuits and stop flame ignition. For maximum structural stability, the W2MOB is integrated with heavy-duty solid brass knurled nuts that tolerate high mounting screw torque without stripping or loosening. Completely odorless, immune to pest or termite damage, and resistant to moisture, humidity, and atmospheric discoloration, this long-lasting 2-gang surface box provides electricians and homeowners with an unyielding, fire-safe electrical housing solution.
Key Features:
Expanded Double-Gang Layout: Perfectly sized at 172×86 mm to accommodate dual-gang faceplates, combined sockets, and multi-switch surface assemblies.
High-Impact Rigid PVC Shell: Formulated from hard PVC compound to deliver exceptional structural rigidity and resist cracking under heavy wall-mounting torque.
Fire-Retardant & Dielectric Insulation: Prevents current leakage to the exterior frame and self-extinguishes to safely contain localized electrical fires.
High-Torque Brass Knurled Nuts: Permanently anchored brass inserts prevent thread stripping, ensuring faceplates remain tightly secured for a vibration-proof fit.
Waterproof & Pest-Proof Shield: Odorless formulation that resists termites, rodents, water, and humidity while preserving its non-fading surface finish over time.
| Features / Parameters | Specifications |
|---|---|
| Brand & Model | Walton W2MOB |
| Product Type | 2 Gang Surface Mounting Back / Outer Box |
| Product Dimensions | 172 mm x 86 mm x 35 mm |
| Primary Material | High-Grade Rigid (Hard) Polyvinyl Chloride (uPVC) |
| Safety Classification | Fire-Resistant & High-Dielectric Insulating Material |
| Hardware Inserts | Heavy-Duty Solid Brass Knurled Nuts (High Torque Capacity) |
| Environmental Resistance | Waterproof, Moisture-Proof & Weather-Resistant |
| Biological Safety | Odorless & Immune to Biotic / Termite / Rodent Attack |
| Surface Finish | Fade-Resistant & Anti-Yellowing Smooth Protective Casing |
| Installation Compatibility | Universal Standard 172x86mm Double-Gang Surface Switches & Sockets |
Why Should You Order & FAQ
When installing dual-gang surface switches or heavy-duty power socket combinations, a double-width back box must maintain total structural integrity across its entire 172 mm span. Standard or unbranded plastic double boxes often suffer from thin molding, causing the center of the box to bow or crack when tightened onto uneven walls. This flexing puts strain on terminal connections, leads to loose faceplates, and increases the risk of electrical arcing. Additionally, cheap boxes rely on plastic screw threads that easily strip during installation, leaving heavy dual sockets wobbly and hazardous. The Walton W2MOB 2 Gang Outer Box solves these issues completely. Built from rigid (hard) PVC with reinforced side walls and embedded brass knurled nuts, it handles high screw torque with ease and provides a flat, rock-solid surface connection. Combined with certified fire-retardant safety, complete resistance to water and pests, and a spacious 35 mm internal depth for clean cable routing, genuine Walton back boxes deliver professional reliability and safety for any commercial or residential installation.
Frequently Asked Questions (FAQ):
What devices fit inside the Walton W2MOB 2 Gang Outer Box?
The W2MOB is built to the standard 172 mm x 86 mm double-gang footprint. It seamlessly fits all standard 2-gang surface switch plates, dual power sockets, combined switch-and-socket plates, and modular regulator faceplates.
Why are brass knurled nuts essential for a 2-gang box?
Double-gang faceplates are larger and frequently subjected to higher plug insertion forces. Solid brass knurled nuts allow installers to apply maximum torque to faceplate screws without stripping the threads, ensuring the faceplate remains tight and flush against the box indefinitely.
Can the W2MOB box be used in damp indoor locations like kitchens or basements?
Yes. The high-density rigid PVC casing is completely waterproof and resistant to aqueous solutions, rust, and humidity, making it an ideal choice for utility areas, kitchens, and commercial workspaces.
Does the material degrade or change color after extended exposure?
No. The Walton W2MOB features anti-yellowing and weather-resistant additives within its PVC compound, preventing discoloration, fading, or embrittlement even after long-term exposure to ambient light and thermal changes.
