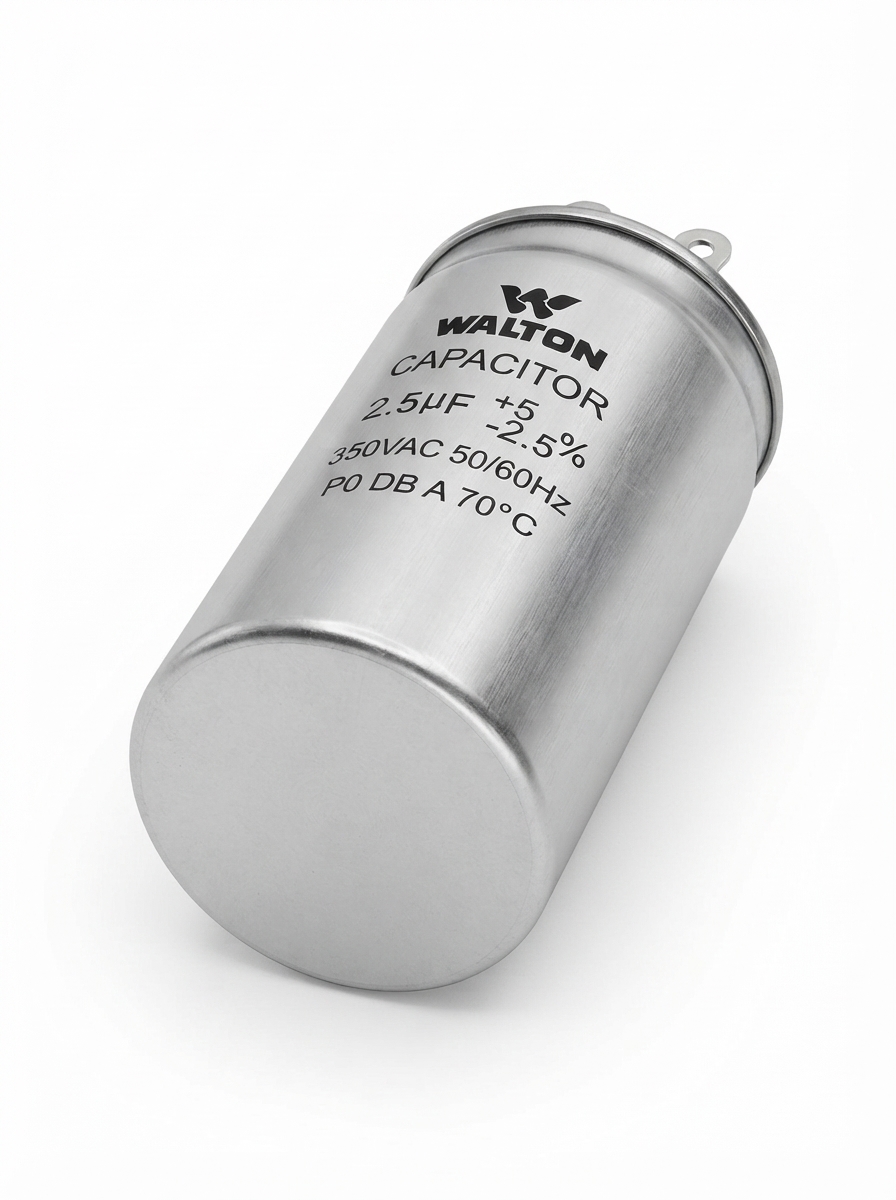

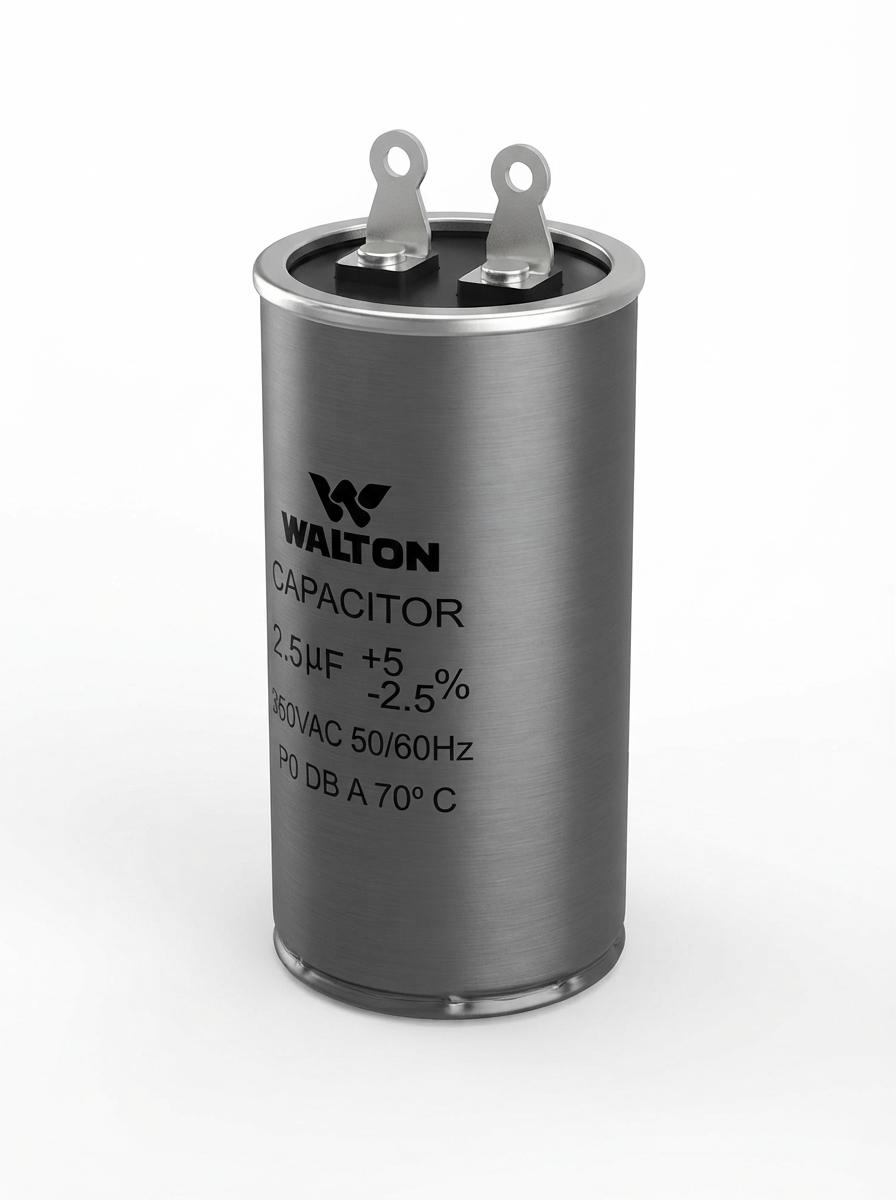

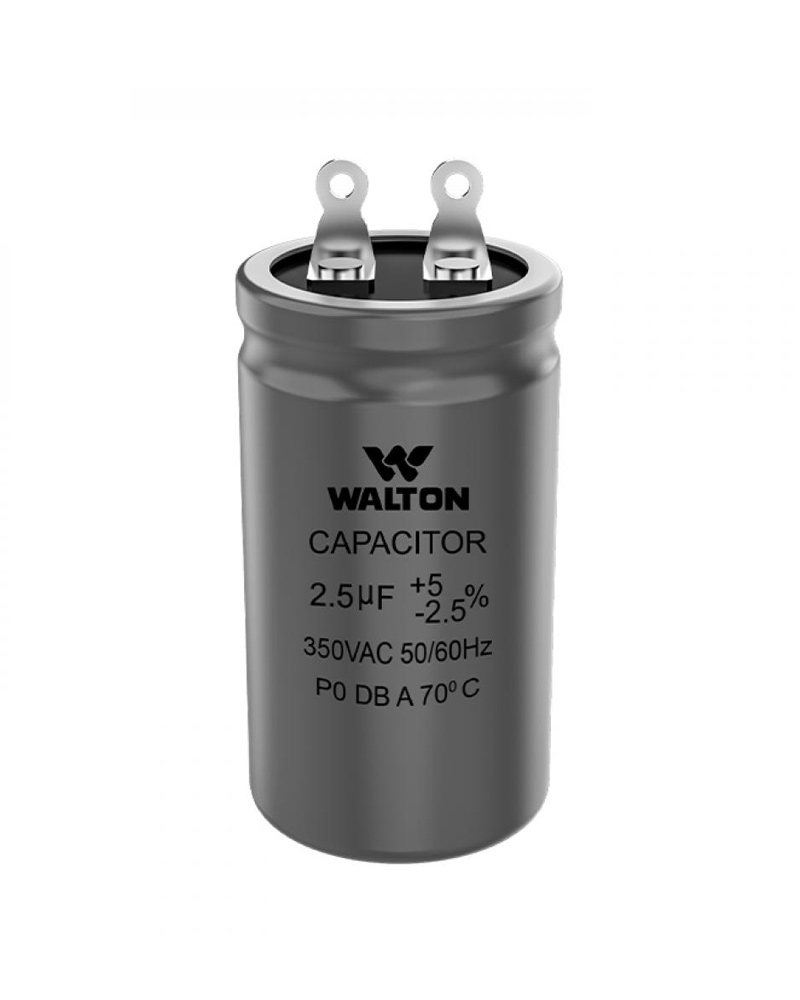

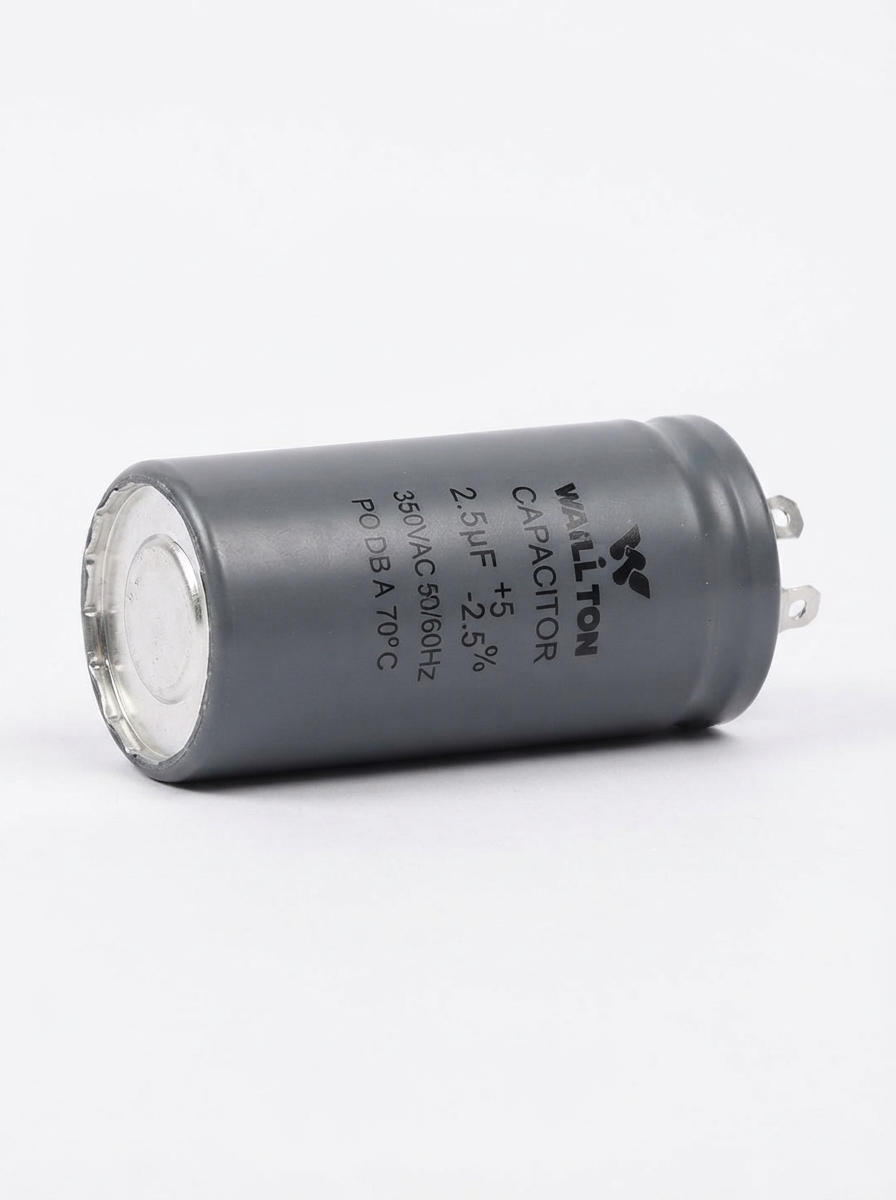

Walton- Ceiling Fan Capacitor – WCFC2.5-1
Original price was: 140.00৳ .112.00৳ Current price is: 112.00৳ .
Product Configuration:
Brand: Walton
Model Code: WCFC2.5-1
Product Type: Ceiling Fan Motor Run Capacitor
Electrical Values: 2.5 µF Capacitance | 350V AC Rated Voltage
Tolerance: +5% / -2.5% High Precision Range
Operating Frequency:** 50 Hz / 60 Hz Universal
Thermal Range: -40°C to 70°C Wide Temperature Resilience
Warranty: 6-Month Replacement Warranty
Walton WCFC2.5-1 Ceiling Fan Capacitor – High-Precision 2.5 µF 350VAC Metallized Run Capacitor
Restore peak rotational speed and optimal motor torque to your ceiling fan with the high-reliability Walton WCFC2.5-1 Ceiling Fan Capacitor. Engineered with a rated capacitance of 2.5 µF and a tight tolerance range of +5%/-2.5%, this heavy-duty run capacitor maintains steady electrical phase shift for maximum fan blade velocity without motor humming or power losses. Rated for 350V AC operation at 50/60 Hz, the WCFC2.5-1 boasts an exceptionally low dissipation factor (<0.0020 at 100Hz), ensuring minimal internal thermal buildup and high energy efficiency. Built to withstand extreme environmental stress, it operates reliably across a wide ambient temperature range from -40°C to 70°C. Every unit undergoes rigorous factory dielectric safety testing—including 2Un/60s voltage tests between leads and 2500VAC/60s insulation testing between lead wire and outer casing. Compact, flame-safe, and durable, the Walton WCFC2.5-1 is the definitive replacement capacitor for long-lasting, smooth ceiling fan performance backed by a 6-month replacement warranty.
Key Features:
High-Precision 2.5 µF Output: Delivers exact phase displacement needed to drive ceiling fan auxiliary windings at full speed with minimal current draw.
Low Dissipation Factor (<0.0020): Ultra-low energy loss reduces internal dielectric heat, significantly prolonging capacitor lifespan under continuous load.
High Dielectric Insulation Rating: Withstands 2500V AC testing between lead and casing to guarantee safety against grounding faults or electrical shocks.
Wide Thermal Tolerance (-40°C to 70°C): Maintains stable capacitance and low ESR (Equivalent Series Resistance) even under extreme heat inside ceiling fan motor housings.
Tight Capacity Tolerance (+5/-2.5%): Superior manufacturing precision ensures consistent motor torque without causing fan motor vibration or electrical hum.
| Features / Parameters | Specifications |
|---|---|
| Brand & Model | Walton WCFC2.5-1 |
| Product Type | Ceiling Fan Run Capacitor |
| Rated Capacitance | 2.5 µF |
| Capacitance Tolerance | +5% / -2.5% (High Precision) |
| Rated Operating Voltage | 350V AC |
| Rated Frequency | 50 Hz / 60 Hz |
| Dissipation Factor | < 0.0020 (at 100 Hz) |
| Voltage Test (Between Leads) | 2 x Rated Voltage (2Un) / 60 seconds |
| Dielectric Test (Lead to Case) | 2500V AC / 60 seconds |
| Operating Temperature Range | -40°C to 70°C |
| Warranty Coverage | 6-Month Replacement Warranty (Terms Apply) |
Why Should You Order & FAQ
When a ceiling fan slows down or struggles to spin despite full voltage from the regulator, the culprit is almost always a degraded motor run capacitor. Cheap, generic capacitors suffer from rapid capacitance loss (drying out), poor heat dissipation, and loose insulation—causing ceiling fans to run slow, overheat, and draw unnecessary electricity. The Walton WCFC2.5-1 Ceiling Fan Capacitor eliminates these performance bottlenecks. Manufactured with high-grade metallized film and strict quality controls, it delivers a precise 2.5 µF charge with a ultra-low dissipation factor (<0.0020). Tested against high voltage impulses (2500V AC lead-to-case testing) and designed to thrive in ambient temperatures up to 70°C, choosing genuine Walton capacitors restores your fan’s original speed, lowers motor heating, and ensures years of quiet, efficient operation.
Frequently Asked Questions (FAQ):
What are the symptoms of a failing ceiling fan capacitor?
Common indicators of a weak or damaged capacitor include a ceiling fan running at significantly reduced speeds on all regulator settings, the fan requiring a manual push to start spinning, or a loud electrical hum coming from the motor.
Is 2.5 µF the correct rating for standard ceiling fans?
Yes. 2.5 µF at 350VAC is the standard, manufacturer-recommended capacitance value for most 56-inch and 48-inch residential ceiling fans to achieve optimal RPM and starting torque.
What makes the Walton WCFC2.5-1 superior to generic capacitors?
Walton capacitors feature an ultra-low dissipation factor (<0.0020) and tight +5/-2.5% tolerance. They undergo rigorous 2500V AC dielectric insulation checks and are rated to operate up to 70°C without capacity degradation, unlike low-cost alternatives that lose capacitance within months.
What does the 6-month replacement warranty cover?
Walton provides a 6-month replacement warranty covering manufacturing defects, sudden loss of rated capacitance, and internal dielectric failure under standard operating conditions. The warranty does not cover damage caused by external short circuits, direct lightning strikes, or physical accidents.
