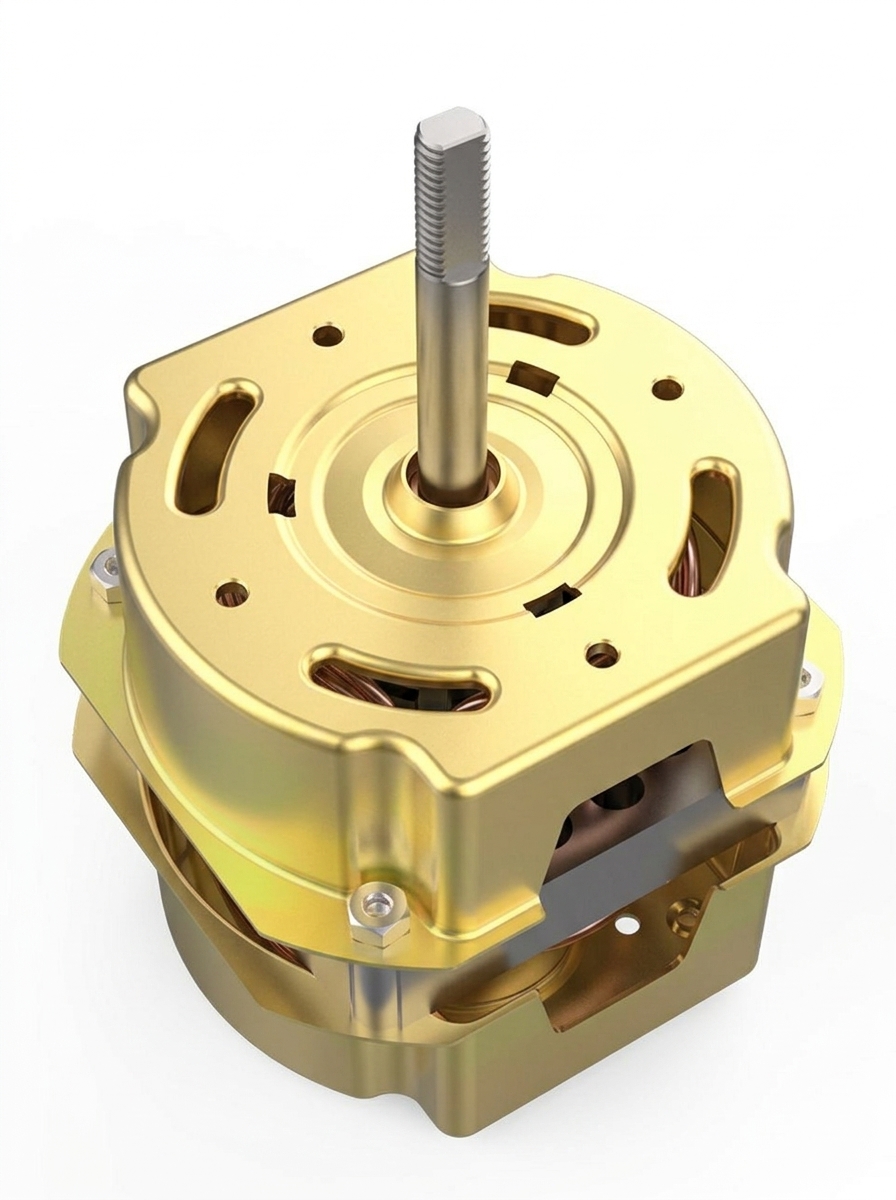

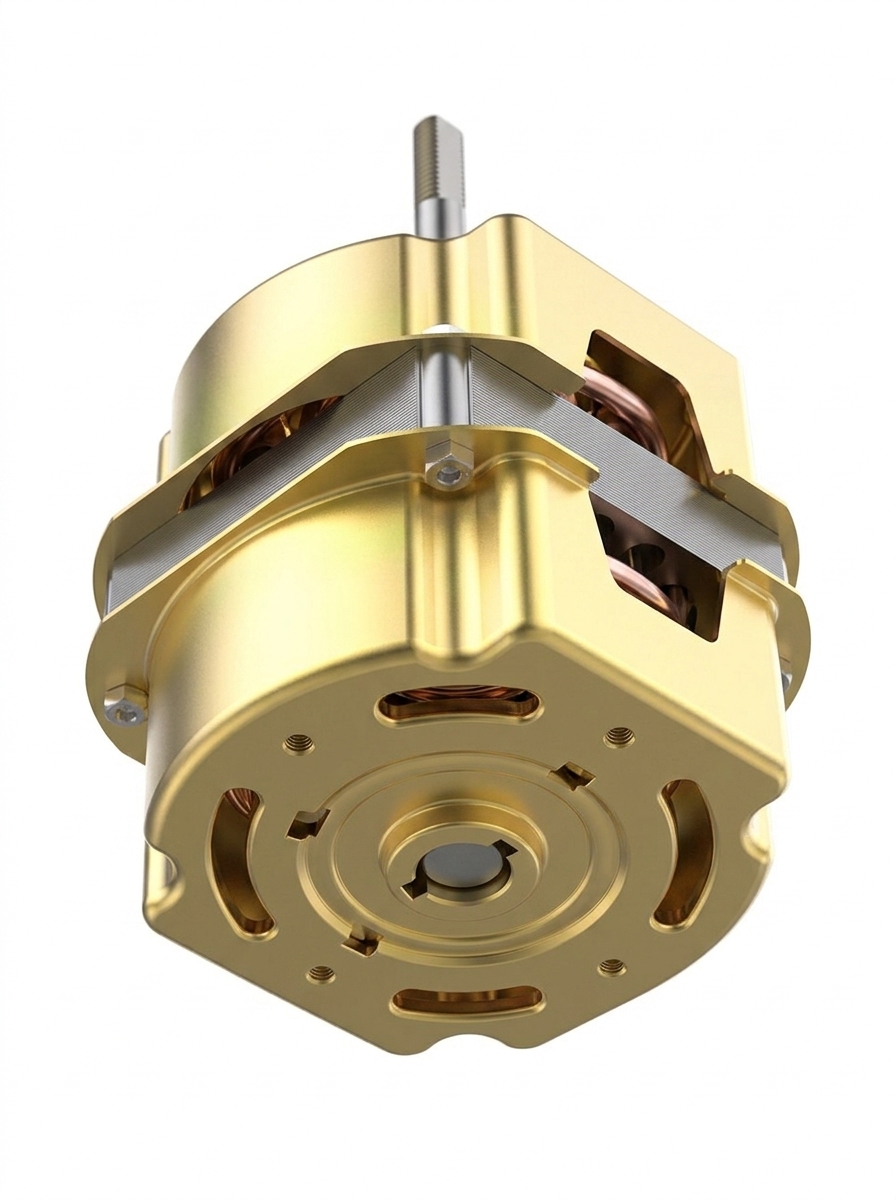

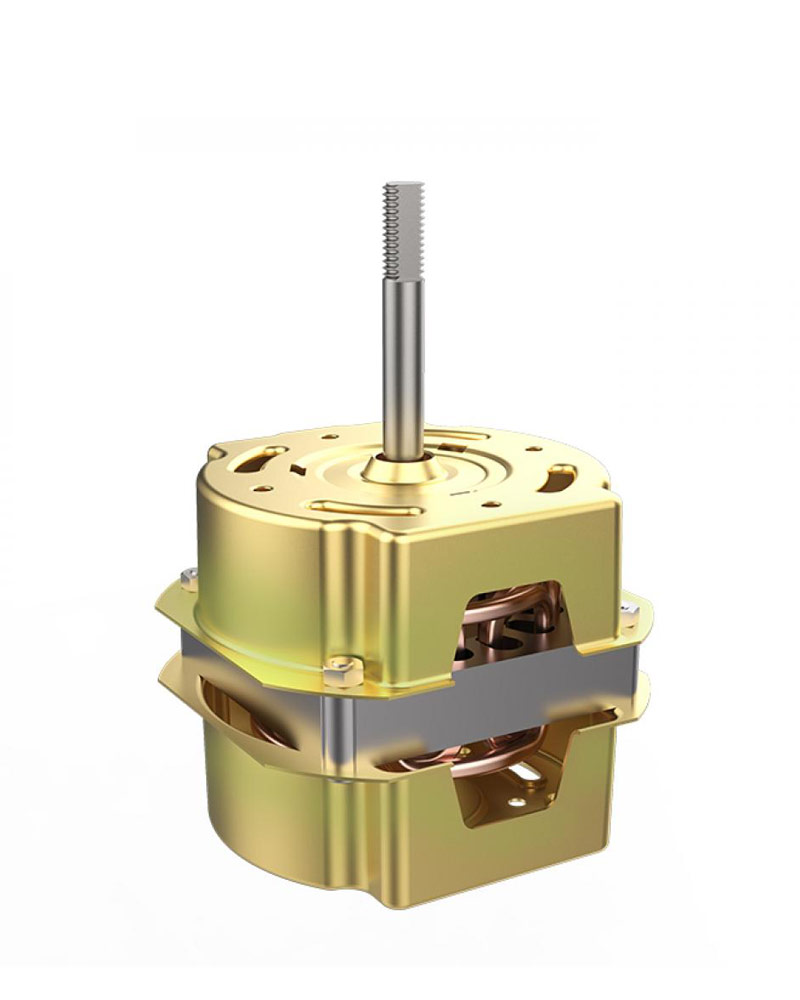

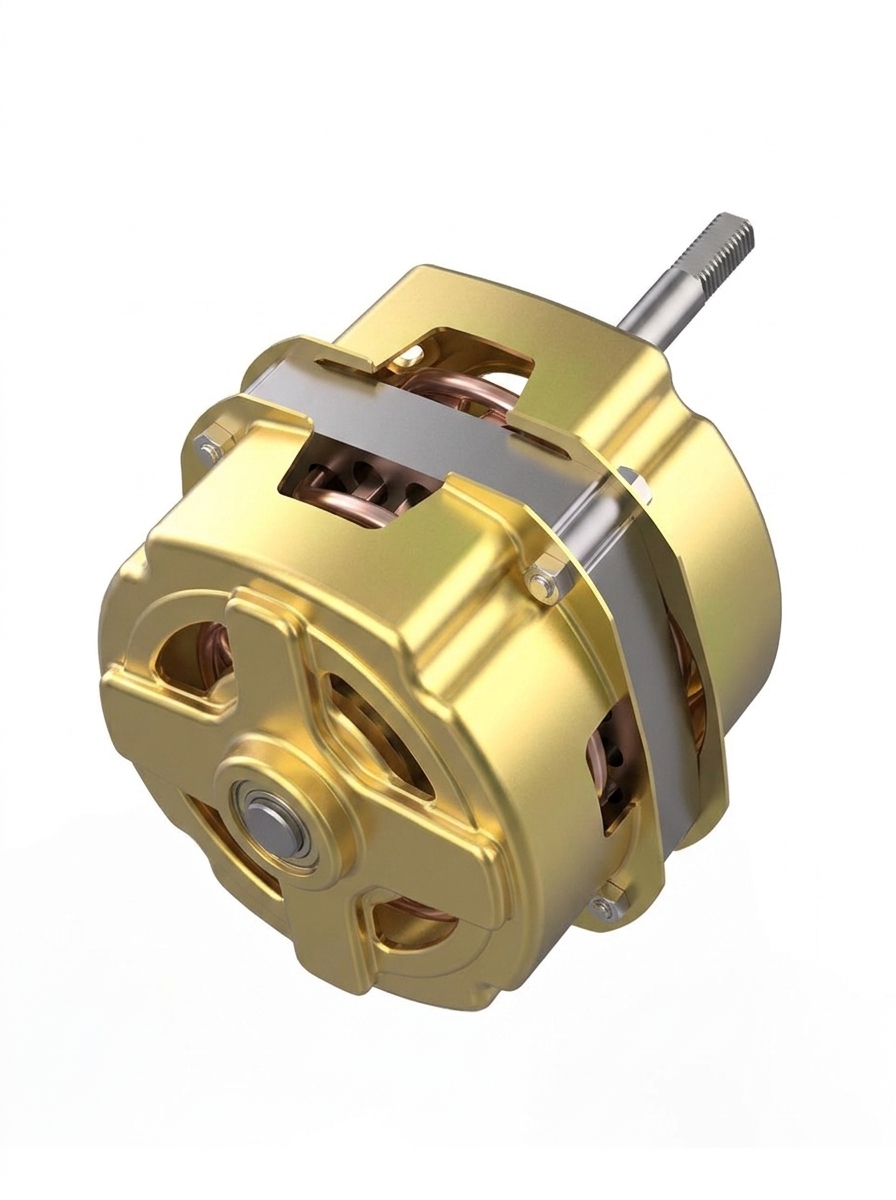

Walton – Hi-Speed (Single Speed) Fan Motor WM9HSSSW55M
Original price was: 850.00৳ .550.00৳ Current price is: 550.00৳ .
Product Configuration:
Brand: Walton
Model Code: WM9HSSSW55M
Motor Type: Single Phase 2-Pole Hi-Speed Induction Motor
Power & Speed: 55W Output | 3000 RPM Synchronous Speed
Electrical Parameters: 220V AC, 50 Hz | 1.8 µF / 450V Capacitor
Winding & Insulation: Class F Super Enameled Wire | High-Grade Silicon Steel
Rotation & Duty: Clockwise (C.W. Front View) | Continuous Duty (Cont.)
Out of stock
Walton WM9HSSSW55M Hi-Speed Fan Motor – 55W 2-Pole Class F Single Phase Induction Motor (220V 3000 RPM)
Experience maximum air thrust and whisper-quiet operation with the high-performance Walton WM9HSSSW55M Hi-Speed Single Speed Fan Motor. Engineered as a powerful 2-pole single-phase induction motor delivering 55 Watts of output power at a synchronous speed of 3000 RPM, this motor is designed for high-velocity cooling applications. Wound with premium Class F super enameled copper wire and built with a high-grade silicon steel stator core, the WM9HSSSW55M provides incredible energy efficiency while maintaining thermal stability even under continuous heavy-duty use. High-precision bush bearings ensure smooth shaft rotation, significantly reducing mechanical wear, acoustic noise, and operational vibration. Every unit undergoes rigorous factory testing—including performance, endurance life cycle, noise levels, vibration tolerances, dielectric strength, and insulation resistance checks—to guarantee compliance with top electrical safety standards. Running on a standard 220V AC 50Hz power supply paired with a 1.8µF/450V capacitor, the Walton WM9HSSSW55M is the ideal replacement drive unit for long-lasting, high-speed fan performance.
Key Features:
High-Speed 3000 RPM 2-Pole Design: Delivers intense air delivery and high electromagnetic torque tailored for single-speed, high-velocity fan blades.
Low-Loss Silicon Steel Stator: High-grade silicon steel laminations optimize magnetic flux, reducing internal heat generation and lowering power consumption.
Class F Thermal Rating: Wound with Class F super enameled wire, capable of handling operating ambient temperatures from -5°C up to 65°C without insulation degradation.
Ultra-Quiet Precision Bush Bearings: Premium bush bearings deliver smooth, low-friction rotational performance with minimal acoustic noise and vibration.
Comprehensive Quality Testing: 100% factory certified through dielectric strength testing (1500V/1min), insulation resistance, noise level verification, and endurance life testing.
| Features / Parameters | Specifications |
|---|---|
| Brand & Model | Walton WM9HSSSW55M |
| Motor Type | Single Phase Induction Motor (2-Pole Hi-Speed) |
| Application | High-Speed Single Speed Fan Drive Unit |
| Output Power | 55 Watts |
| Rated Voltage & Frequency | 220V AC, 50 Hz |
| Synchronous Speed | 3000 RPM (High-Speed) |
| Direction of Rotation | Clockwise (C.W. viewed from front side) |
| Insulation Class | Class F (High Thermal Tolerance) |
| Winding & Stator Material | Class F Super Enameled Wire & High-Grade Silicon Steel Stator |
| Bearing Type | High-Quality Precision Bush Bearing |
| Rated Capacitor | 1.8 µF / 450V |
| Duty Cycle | Continuous (Cont.) |
| Dielectric Test Rating | 1500V / 1 min or 1800V / 1 sec |
| Operating Ambient Temperature | -5°C to 65°C |
Why Should You Order & FAQ
Operating a high-speed fan at 3000 RPM subjects internal motor components to intense thermal and mechanical stress. Inferior aftermarket replacement motors frequently rely on cheap copper-clad aluminum (CCA) windings, low-grade iron cores, and loose-fitting bushings. Under continuous high-speed rotation, these low-quality components overheat rapidly, draw excessive current, vibrate loudly, and often burn out within a few months of summer use. The Walton WM9HSSSW55M Hi-Speed Fan Motor eliminates these reliability concerns. Built with genuine Class F super enameled copper wire and stacked with low-loss silicon steel, it maintains low current draw while providing maximum torque at 3000 RPM. Supported by precision-engineered bush bearings and backed by exhaustive multi-stage quality testing (including noise, vibration, life cycle, and dielectric insulation tests), choosing genuine Walton motors ensures smooth, whisper-quiet operation and years of uninterrupted cooling.
Frequently Asked Questions (FAQ):
What type of fan is the Walton WM9HSSSW55M motor designed for?
The WM9HSSSW55M is specifically engineered as a replacement drive motor for high-speed, single-speed table fans, wall fans, or exhaust assemblies requiring a 55W, 2-pole, 3000 RPM clockwise (C.W.) motor.
What capacitor size is required for this motor?
The motor requires a 1.8 µF / 450V AC motor run capacitor to ensure optimal starting torque, correct phase rotation, and sustained 3000 RPM operating speed.
Why is Class F insulation wire important for a 3000 RPM high-speed motor?
At higher rotation speeds (3000 RPM), internal motor temperatures rise faster than in standard 1500 RPM motors. Class F insulation provides exceptional thermal protection, preventing short circuits and wire insulation breakdown over extended periods of continuous use.
What safety tests are performed on this motor at the factory?
Walton subjects every motor to rigorous factory quality control, including Performance Testing, Life Cycle Testing, Dielectric Strength Testing (1500V/1min or 1800V/1sec), Insulation Resistance Testing, Noise Output Analysis, and Vibration Checks.
