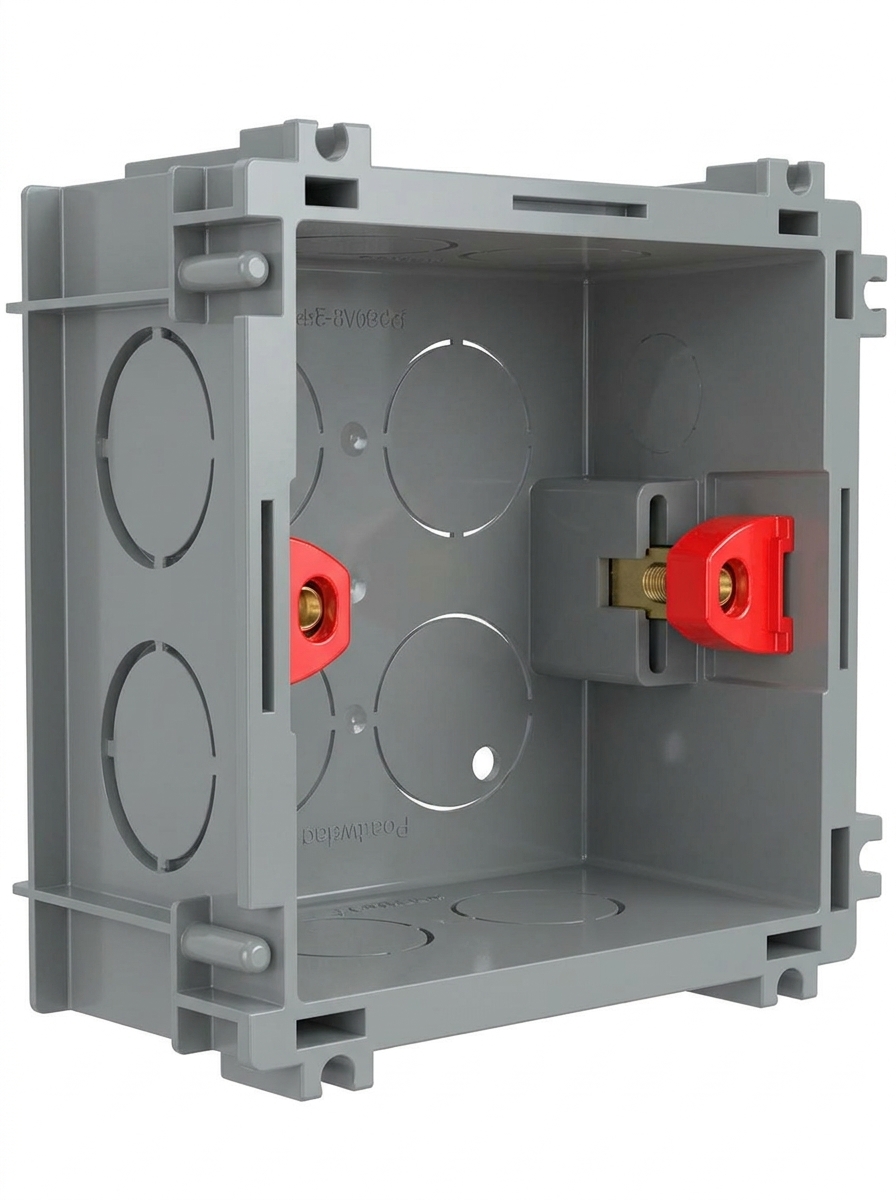

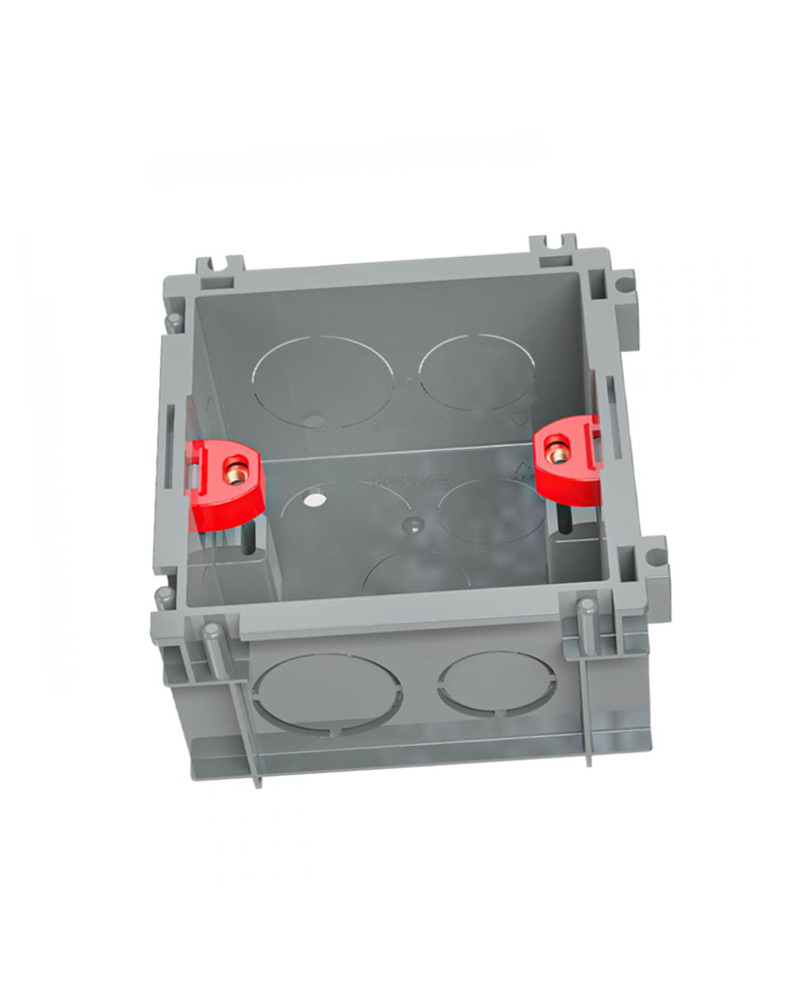

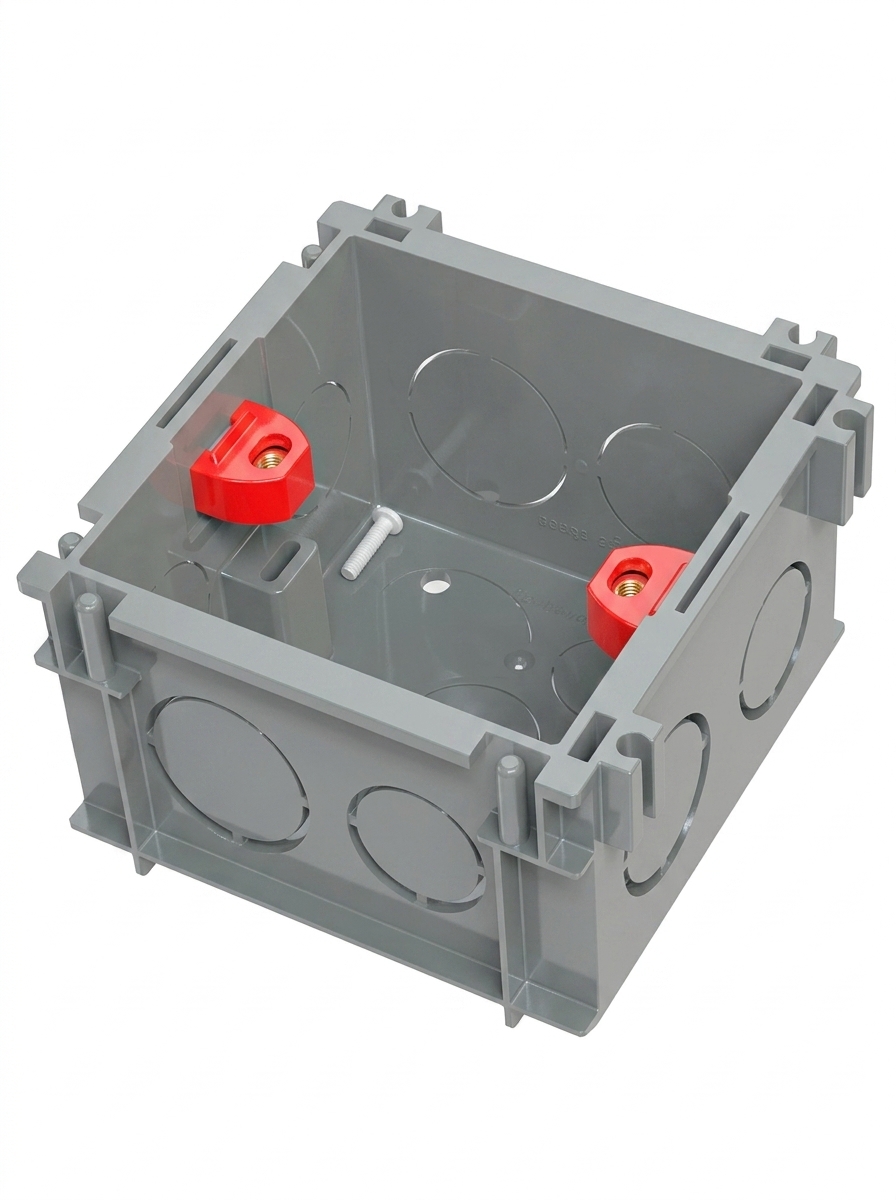

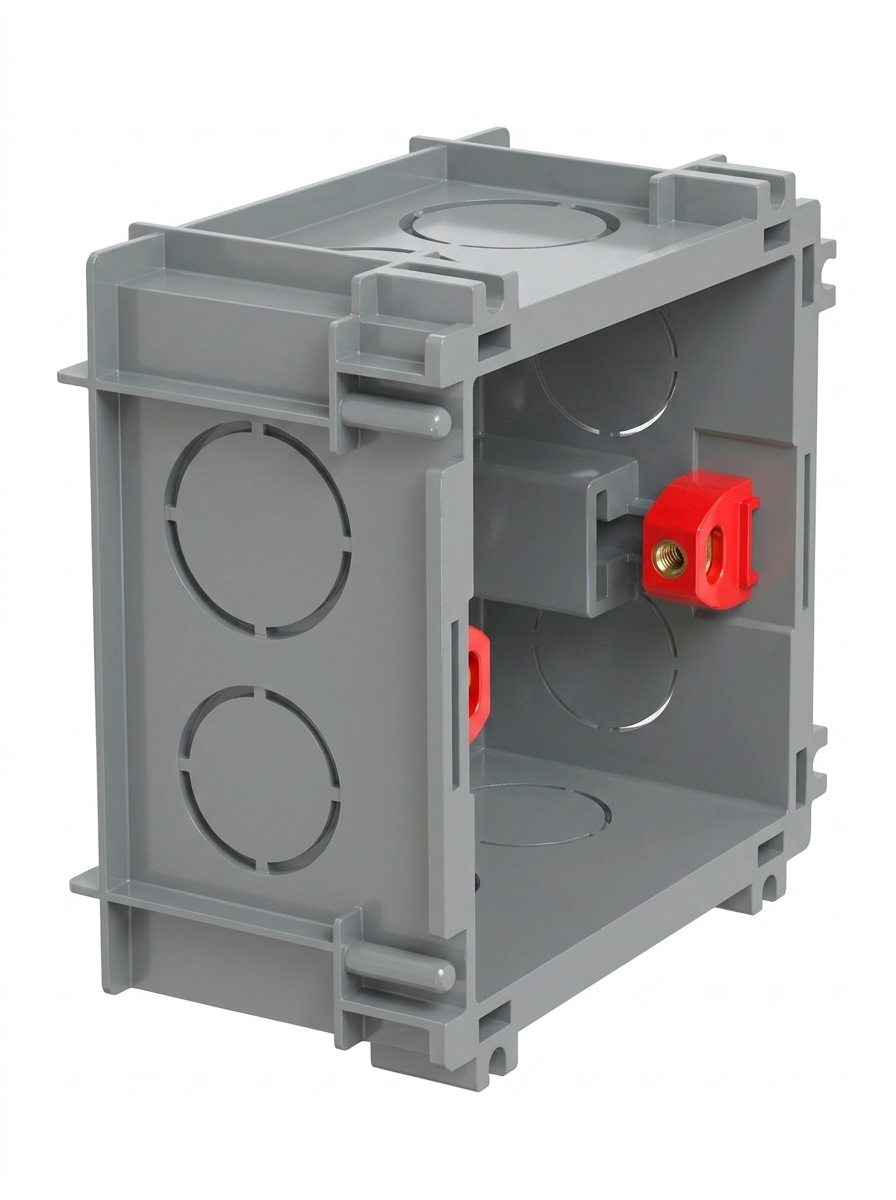

Walton-Premium 1-Gang PVC Concealed Wall Box – WPCB1GM2(Grey)
Original price was: 45.00৳ .36.00৳ Current price is: 36.00৳ .
Product Configuration:
Brand: Walton
Model Code: WPCB1GM2
Product Type: 1-Gang Concealed Back Box / Wall Mounting Enclosure
Outer Dimensions: 86 mm x 86 mm x 52 mm (L x W x H)
Nut Hole Spacing: 60.3 mm Center-to-Center Pitch
Material Base: High-Impact Non-Conductive Polymer
Conduit Compatibility: Solvent Cement & Threaded Joint Entry
Walton WPCB1GM2 Concealed Box – 1-Gang 86x86x52mm Non-Conductive Flush Electrical Back Box
Ensure total electrical safety and seamless wall mounting for your light switches and power outlets with the Walton WPCB1GM2 Concealed Box. Designed to precision dimensions of 86x86x52 mm, this heavy-duty 1-gang flush back box is engineered to embed directly into masonry and concrete walls during building construction. Constructed from high-impact, non-conductive polymer plastic, it acts as a robust dielectric barrier that completely insulates electrical terminals from surrounding damp concrete and mortar. Featuring a standardized nut hole center-to-center distance of 60.3 mm, it offers universal alignment with all standard 86mm switch plates and wall sockets. The box provides convenient conduit knockouts compatible with both solvent cement bonding and threaded joining methods, guaranteeing secure, leak-free connections with PVC electrical piping. Resistant to corrosion, moisture, and plaster chemical attack, the Walton WPCB1GM2 is an essential wall-mounting solution for modern residential and commercial electrical installations.
Key Features:
Non-Conductive Electrical Insulation: Built from high-dielectric plastic to eliminate earthing hazards, current leakage, and short circuits inside wall cavities.
Standard 60.3 mm Screw Pitch: Precise 60.3 mm brass nut hole alignment guarantees effortless installation of all standard 1-gang switch and socket faceplates.
Leak-Free Conduit Joining: Supports both solvent cement welding and threaded adapter connections for tight, dust-proof, and moisture-proof conduit entries.
Generous 52mm Depth: Spacious 52 mm back cavity provides ample space for wiring loops, wire nuts, and deep-bodied modular mechanisms.
Corrosion & Alkaline Resistance: Completely immune to rust, moisture absorption, and chemical degradation from wet cement and lime plaster.
| Features / Parameters | Specifications |
|---|---|
| Brand & Model | Walton WPCB1GM2(Grey) |
| Product Type | 1-Gang Flush Concealed Wall Mounting Box |
| Product Dimensions | 86 mm x 86 mm x 52 mm (L x W x H) |
| Nut Hole Center-to-Center Distance | 60.3 mm (Standard 1-Gang Pitch) |
| Electrical Insulation | Non-Conductive Dielectric Polymer Plastic |
| Conduit Joint Compatibility | Solvent Cement & Threaded Joint Connection |
| Corrosion & Chemical Resistance | High Resistance to Rust, Moisture, and Concrete Alkalinity |
| Installation Type | In-Wall Recessed Concealed Masonry Mounting |
Why Should You Order & FAQ
Using cheap metal or low-grade recycled plastic back boxes inside concrete walls introduces severe long-term risks. Metal concealed boxes quickly corrode from wall dampness and risk conducting electricity if a live wire touches the casing, while flimsy plastic boxes crack under masonry pressure and lose screw thread alignment over time. The Walton WPCB1GM2 Concealed Box delivers an engineered, uncompromising safety solution. Formulated from high-grade, non-conductive polymer material, it provides absolute dielectric safety and withstands heavy masonry pressure without cracking. Its precise 60.3 mm nut hole pitch and 52 mm deep wiring cavity make installing modern switches fast and hassle-free, while leak-free conduit joining capabilities protect internal wiring from moisture ingress. Choosing genuine Walton concealed installation accessories ensures lifetime wall safety and structural reliability for your property.
Frequently Asked Questions (FAQ):
What type of switch and socket plates fit the Walton WPCB1GM2?
The WPCB1GM2 features a standard 86×86 mm outer profile with a 60.3 mm nut hole center-to-center distance, making it universally compatible with all standard 1-gang modular switch plates, wall sockets, and fan dimmers.
How are electrical conduits attached to this concealed box?
The box features pre-molded knockout entries designed for easy connection using standard PVC solvent cement for permanent bonding or threaded conduit adapters for a tight, secure, and leak-free joint.
Why is non-conductive polymer better than traditional metal back boxes?
Non-conductive polymer never rusts or corrodes when embedded in wet concrete. Crucially, it acts as an electrical insulator, eliminating the risk of electric shocks or short circuits caused by loose live wires touching a metal box frame.
Is the 52 mm depth sufficient for modern modular sockets?
Yes. The generous 52 mm depth provides excess wiring clearance, allowing electricians to neatly fold incoming and outgoing conductors without crowding or bending terminals tightly behind the switch faceplate.
| Brand | |
|---|---|
| Color | Gray |
