Sale!
Categories: Distribution Box

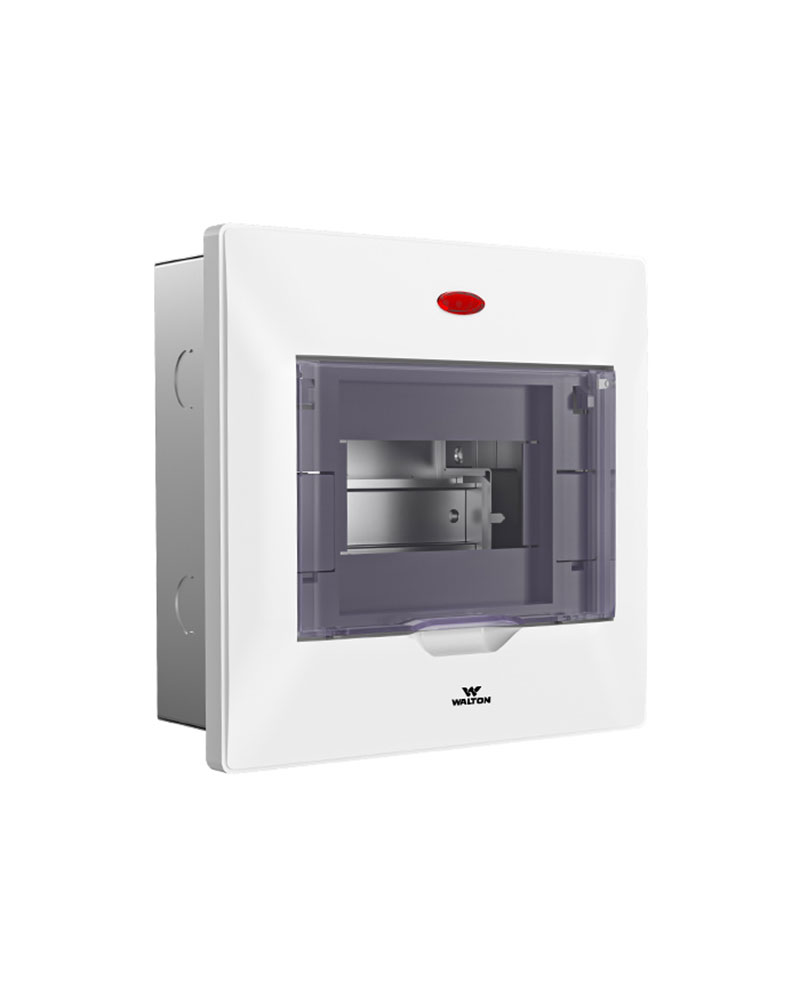

WALTON WDB-ATHENA-3TP-9W 9-Way Surface Mounted Distribution Board
Original price was: 810.00৳ .648.00৳ Current price is: 648.00৳ .
Brand & Line: WALTON ATHENA Series Distribution Board
Model: WDB-ATHENA-3TP-9W
Capacity & Mounting: 9 Way | Surface Mounted
Dimensions: 285 mm x 208 mm x 98 mm
The WALTON WDB-ATHENA-3TP-9W Surface Mounted Distribution Board provides a 9-way circuit capacity, metal base box, flame-resistant ABS + GPPS cover, Up & Down door mechanism, indicator system, and 285x208x98 mm dimensions for secure electrical management.
| Parameter | Specification Details |
|---|---|
| Brand & Product Line | WALTON Distribution Board (ATHENA Series) |
| Model Name | WDB-ATHENA-3TP-9W |
| Capacity & Connection Type | 9 Way Circuit Capacity (3TP) |
| Mounting Method | Surface Mounted |
| Enclosure Materials | Metal Base Box | ABS + GPPS Front Cover |
| Product Dimensions (L x W x H) | 285 mm x 208 mm x 98 mm |
| Mechanical Features | Up & Down System Cover Mechanism |
| Status Monitoring | Integrated Power / Phase Indicator System |
| Safety & Eco Standards | Eco-Friendly, Flame-Retardant Cover, High Reliability Insulation |
WALTON WDB-ATHENA-3TP-9W 9-Way Surface Mounted Distribution Board
Streamline multi-circuit power distribution across modern apartments, commercial offices, and light industrial units with the WALTON WDB-ATHENA-3TP-9W ATHENA Series Distribution Board. Built to accommodate up to 9 ways of protective breakers, this surface-mounted enclosure combines a heavy-duty metal base box for solid structural grounding with a flame-retardant ABS + GPPS front cover.
Featuring an ergonomic Up & Down cover mechanism and an integrated indicator system, it provides easy access for maintenance, clean cable organization, and instant visual status verification.
Expanded 9-Way Circuit Capacity: Ample internal space measuring 285 x 208 x 98 mm for residential floors and multi-load sub-panels.
Heavy-Duty Hybrid Construction: Grounded metal base rear box coupled with a durable, high-finish polymer cover.
Up & Down Cover System: Smooth lid action protects breakers from dust while providing easy access for resets.
Integrated Power Indicator System: Offers quick visual feedback on panel power status for enhanced operational safety.
| Brand | |
|---|---|
| Color | White |
