Sale!
Categories: Solar Panel, Solar Solution

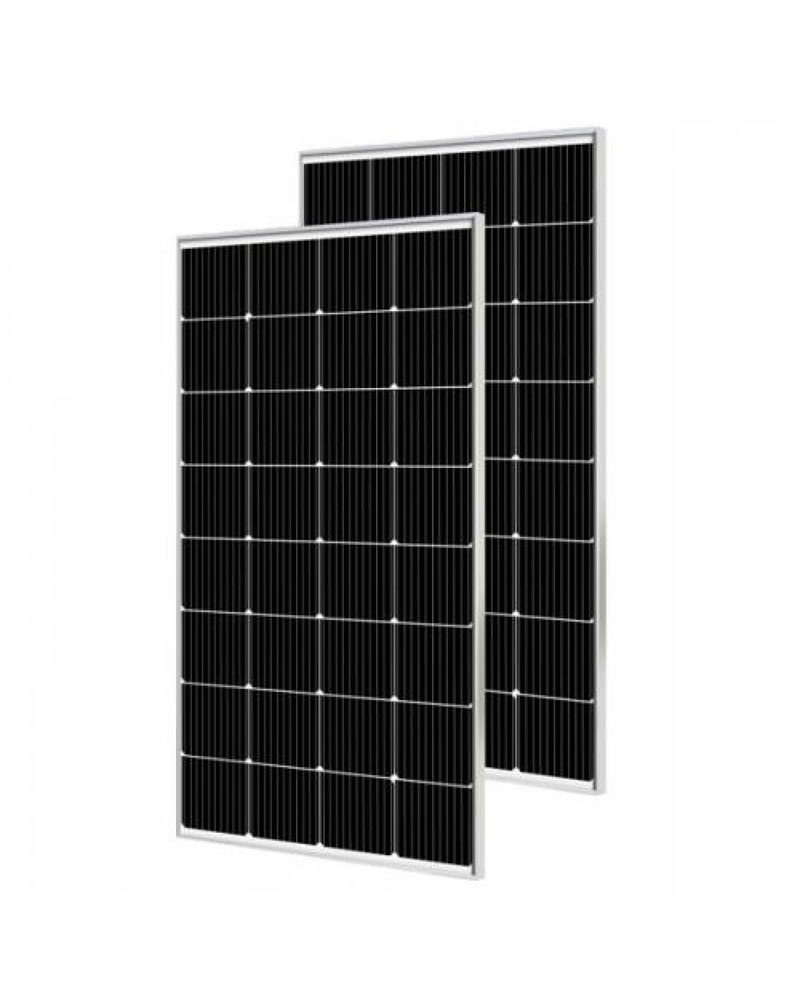

WALTON WSOL-MONO-30W Monocrystalline Solar Panel
Original price was: 2,050.00৳ .1,640.00৳ Current price is: 1,640.00৳ .
Brand & Line: WALTON Monocrystalline Solar Panel
Model: WSOL-MONO-30W
Rating: 30W | Vmp: 21.05V | Imp: 4.03A | 23% Efficiency
Dimensions: 630 * 780 * 30 mm (5.36 kg)
Warranty: 20 Years Replacement Warranty
The WALTON WSOL-MONO-30W Monocrystalline Solar Panel features 30W output, Grade A Mono PERC cells (23% efficiency), 21.05V operating voltage, 3.2mm anti-reflective glass, anodized aluminum frame, and an IP-rated junction box. Includes a 20-year replacement warranty.
| Parameter | Specification Details |
|---|---|
| Brand & Product Line | WALTON Monocrystalline Solar Panel Series |
| Model Name | WSOL-MONO-30W |
| Max Power (Pmax) & System Volt | 30W (±3% Power Tolerance) | 12V System (1000V DC Max) |
| Cell Type & Efficiency | Grade A Mono PERC (182*61mm) | High 23% Cell Efficiency |
| Optimum Voltage (Vmp) & Current (Imp) | Vmp: 21.05V | Imp: 4.03A |
| Open-Circuit Volt (Voc) & Short-Circuit Curr (Isc) | Voc: 24.48V | Isc: 4.39A |
| Cell Layout & Glass Thickness | 36 Cells (9×4 Array) | 3.2mm Anti-Reflective Toughened Glass |
| Frame & Junction Box | Anodized Aluminum Alloy Frame | PV-CQ006 Junction Box |
| Dimensions & Weight | 630 * 780 * 30 mm | ~5.36 kg |
| Warranty Policy | 20 Years Replacement Warranty |
WALTON WSOL-MONO-30W Monocrystalline Solar Panel
Power small off-grid DC setups, LED lighting kits, CCTV cameras, and solar battery chargers with the compact WALTON WSOL-MONO-30W Monocrystalline Solar Panel. Built with Grade A Mono PERC cells yielding 23% cell efficiency, this 30-Watt panel generates maximum energy even in high-temperature environments or partial shading conditions.
Protected by 3.2mm anti-reflective glass and an anodized aluminum alloy frame, it withstands severe outdoor weather and delivers reliable performance backed by a 20-year warranty.
23% High Cell Efficiency: Premium Grade A Mono PERC technology yields maximum power output per square inch.
Reduced Shading & Thermal Loss: Performs efficiently under partial shade and hot tropical climates.
Heavy-Duty Anodized Frame: Corrosion-resistant aluminum frame handles high wind and environmental exposure.
20 Years Warranty: Long-term energy security supported by a 20-year replacement guarantee.
| Brand | |
|---|---|
| Color | Black |
