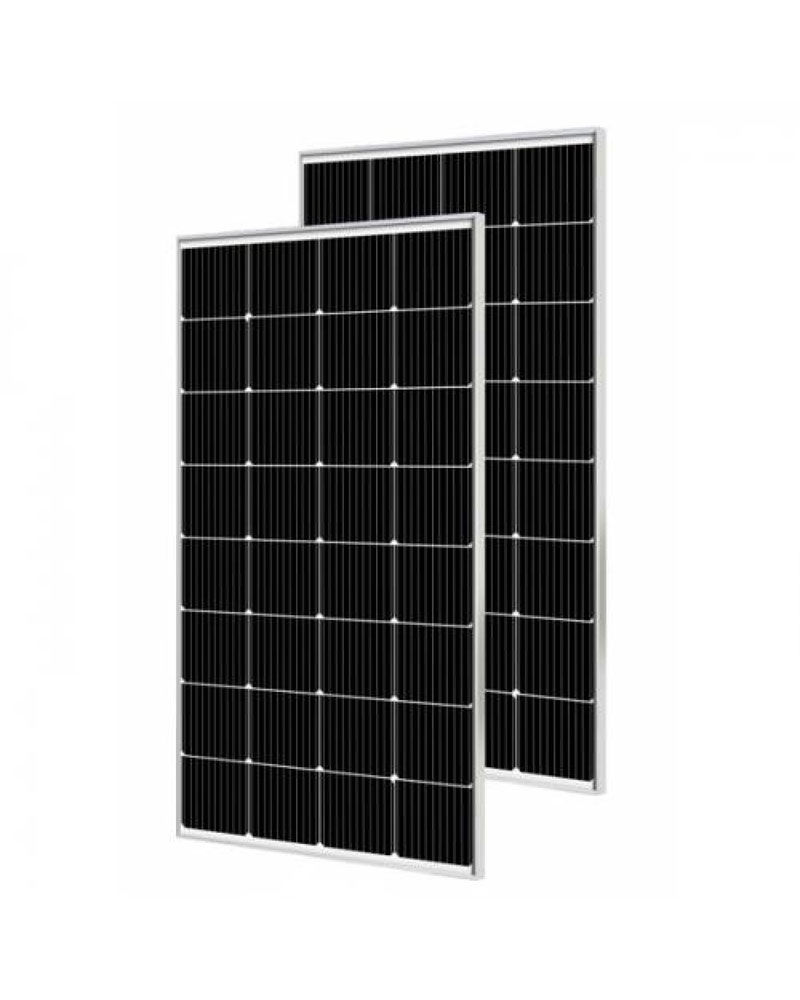

WALTON WSOL-MONO-50W Monocrystalline Solar Panel
Original price was: 3,350.00৳ .2,680.00৳ Current price is: 2,680.00৳ .
- Brand & Line: WALTON Monocrystalline Solar Panel
- Model: WSOL-MONO-50W
- Rating: 50W | Vmp: 21.05V | Imp: 4.03A | 23% Efficiency
- Dimensions: 630 * 780 * 30 mm (5.36 kg)
- Warranty: 20 Years Replacement Warranty
The WALTON WSOL-MONO-50W Monocrystalline Solar Panel offers 50W output, Grade A Mono PERC cells (23% efficiency), 21.05V operating voltage, 3.2mm anti-reflective glass, anodized aluminum frame, and an IP-rated junction box. Includes a 20-year replacement warranty.
| Parameter | Specification Details |
|---|---|
| Brand & Product Line | WALTON Monocrystalline Solar Panel Series |
| Model Name | WSOL-MONO-50W |
| Max Power (Pmax) & System Volt | 50W (±3% Power Tolerance) | 12V System (1000V DC Max) |
| Cell Type & Efficiency | Grade A Mono PERC (182*61mm) | High 23% Cell Efficiency |
| Optimum Voltage (Vmp) & Current (Imp) | Vmp: 21.05V | Imp: 4.03A |
| Open-Circuit Volt (Voc) & Short-Circuit Curr (Isc) | Voc: 24.48V | Isc: 4.39A |
| Cell Layout & Glass Thickness | 36 Cells (9×4 Array) | 3.2mm Anti-Reflective Toughened Glass |
| Frame & Junction Box | Anodized Aluminum Alloy Frame | PV-CQ006 Junction Box |
| Dimensions & Weight | 630 * 780 * 30 mm | ~5.36 kg |
| Warranty Policy | 20 Years Replacement Warranty |
WALTON WSOL-MONO-50W Monocrystalline Solar Panel
Charge 12V battery setups, solar streetlights, and rural home kits efficiently with the WALTON WSOL-MONO-50W Monocrystalline Solar Panel. Featuring 23% efficiency Grade A Mono PERC silicon cells, this 50-Watt module delivers reliable energy yields even in high heat or low-light morning/evening hours.
Framed in robust anodized aluminum with 3.2mm tempered anti-reflective glass, it offers excellent structural durability for long outdoor exposure.
Grade A Mono PERC Cells: Delivers 23% conversion efficiency for faster battery charging.
Low Temperature Coefficient: Resists thermal power drop during hot summer days (-0.34%/°C).
Anti-Reflective Tempered Glass: Maximizes sunlight absorption while protecting cells from weather impact.
20 Years Warranty: Supported by WALTON’s 20-year product replacement warranty.
| Brand | |
|---|---|
| Color | Black |
