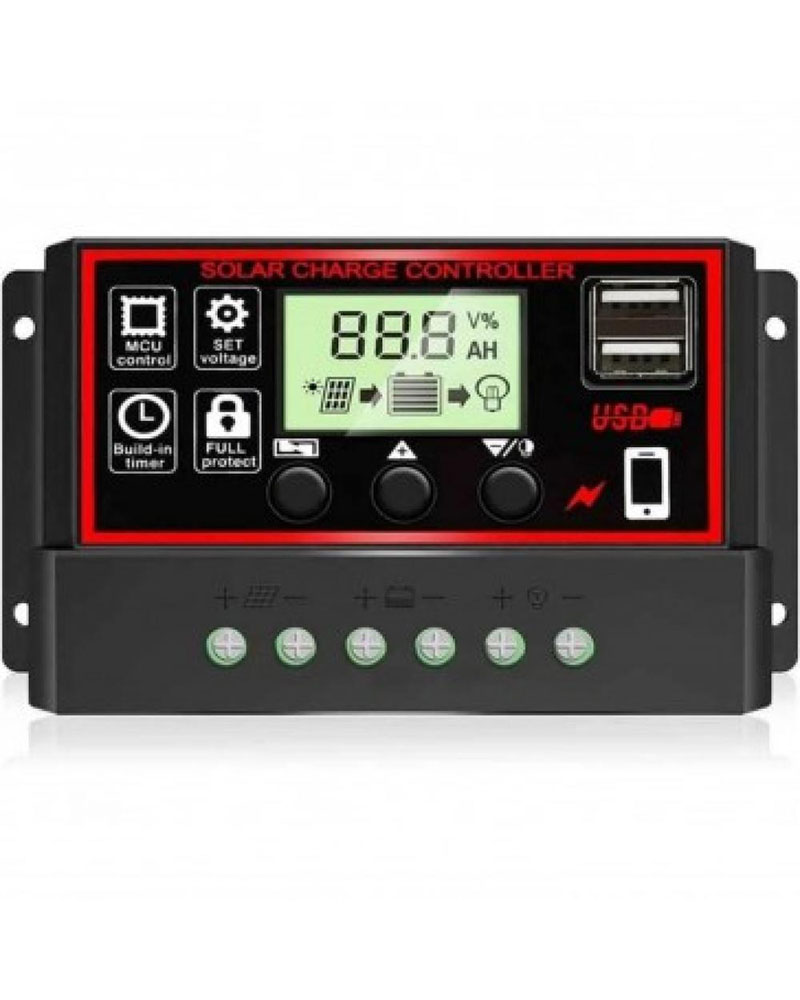

WALTON WSOL-CC-20A Solar Charge Controller
Original price was: 900.00৳ .720.00৳ Current price is: 720.00৳ .
- Brand & Line: WALTON Solar Charge Controller
- Model: WSOL-CC-20A
- System Voltage & Current: 12V/24V Auto | 20A Charge / Discharge
- Features: Dual USB Ports (5V/2A) | LCD Display | Dual MOSFET
- Warranty: 1 Year Replacement Warranty
Out of stock
The WALTON WSOL-CC-20A Solar Charge Controller delivers 20A charging and discharging capacity, 12V/24V auto detection, 3-stage PWM regulation, dual 5V/2A USB ports, LCD control panel, and dual MOSFET protection, backed by a 1-year replacement warranty.
| Parameter | Specification Details |
|---|---|
| Brand & Product Line | WALTON Solar Charge Controller Series |
| Model Name | WSOL-CC-20A |
| Controller & Charging Technology | Built-in Industrial Microcontroller | 3-Stage PWM Charging |
| System Voltage & Auto-Adoption | 12V / 24V DC Auto Adaptation |
| Rated Charge & Discharge Current | 20A Charging Current | 20A Discharging Current |
| Max Solar Input Voltage | 12V System: Max 23V PV Input | 24V System: Max 46V PV Input |
| Battery Type Presets & Full Voltages | b01 Sealed Lead-Acid (14.4V) | b02 Gel (14.2V) |
| Adjustable Voltage Parameters | Float Charge: 13.7V (12.7V–15V) | LVD: 10.7V (9V–11.3V) |
| USB Outputs & Standby Current | Dual USB 5V / 2A Max Output | Low Self-Consumption (<10mA) |
| Safety & Hardware Protections | Dual MOSFET Reverse Current, Short/Open Circuit & Overload |
| Operating Temp & Dimensions | -35°C to +60°C | 133 * 70 * 35 mm (Weight: 132g, Black Body) |
| Warranty Policy | 1 Year Replacement Warranty |
WALTON WSOL-CC-20A Solar Charge Controller
Power larger home solar arrays, DC appliances, and battery banks with the WALTON WSOL-CC-20A Solar Charge Controller. Designed for higher current loads up to 20 Amps, this heavy-duty PWM controller manages solar input for 12V or 24V battery systems using a 3-stage charging process.
Equipped with an intuitive LCD screen, programmable timer controls, and dual 5V/2A USB ports, it lets you monitor and adjust float charging levels, low voltage disconnects (LVD), and load timing. Dual MOSFET reverse-current protection keeps power moving safely into the battery bank while preventing overnight back-feed loss.
20A High Power Rating: Handles double the solar panel capacity and DC load output compared to 10A models.
12V/24V Smart Auto Adaptation: Seamlessly switches internal profiles based on the connected battery voltage.
Interactive LCD Screen: Offers clear visibility into charging status, battery levels, and custom voltage settings.
Dual MOSFET Reverse Current Defense: Minimizes heating while blocking current backflow during non-sunny hours.
| Brand | |
|---|---|
| Color | Black |
